Tracing my github actions

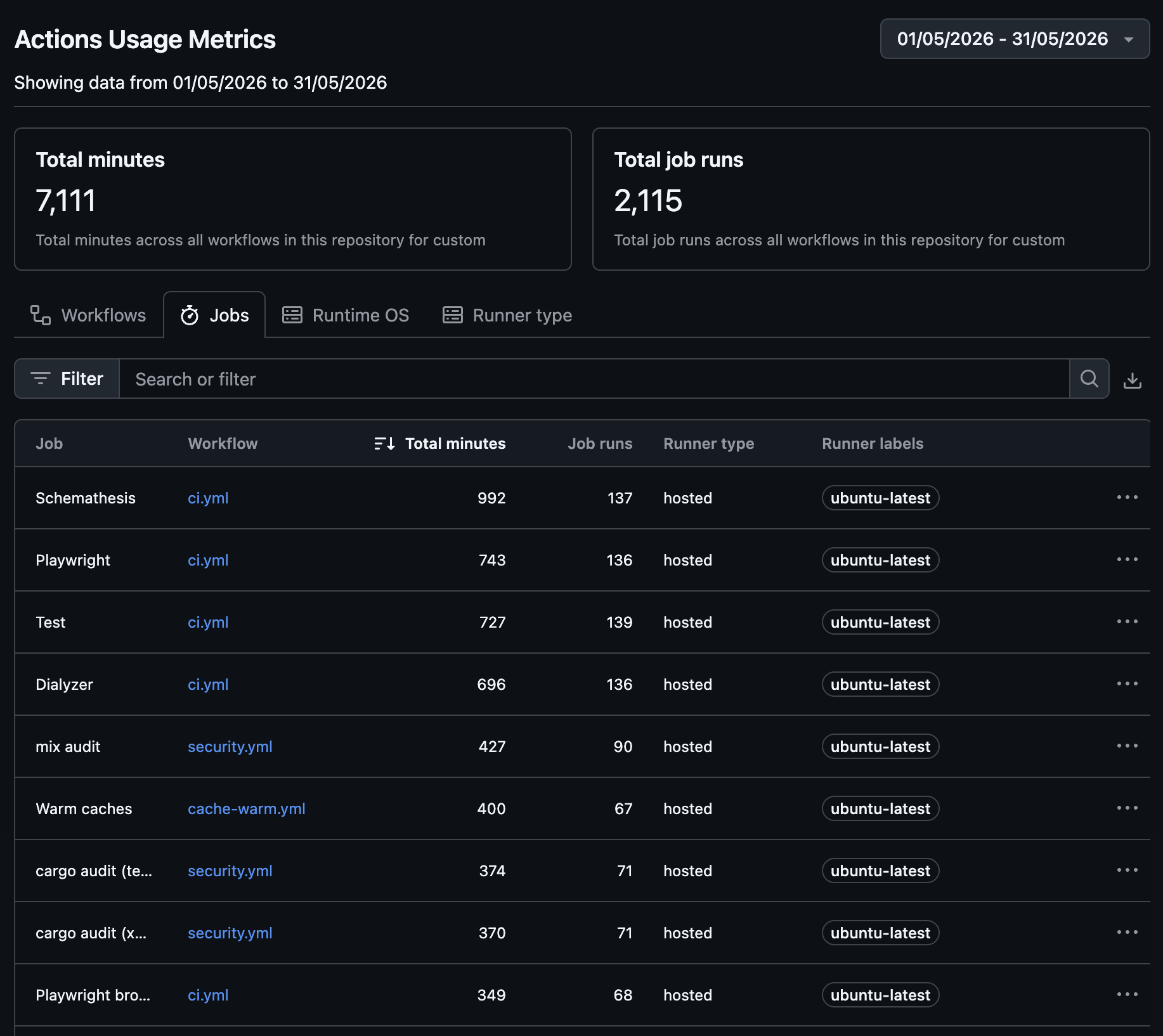

I've added a LOT of actions to one of my elixir project, and I've blown through the 3000 minutes included in the github pro plan.

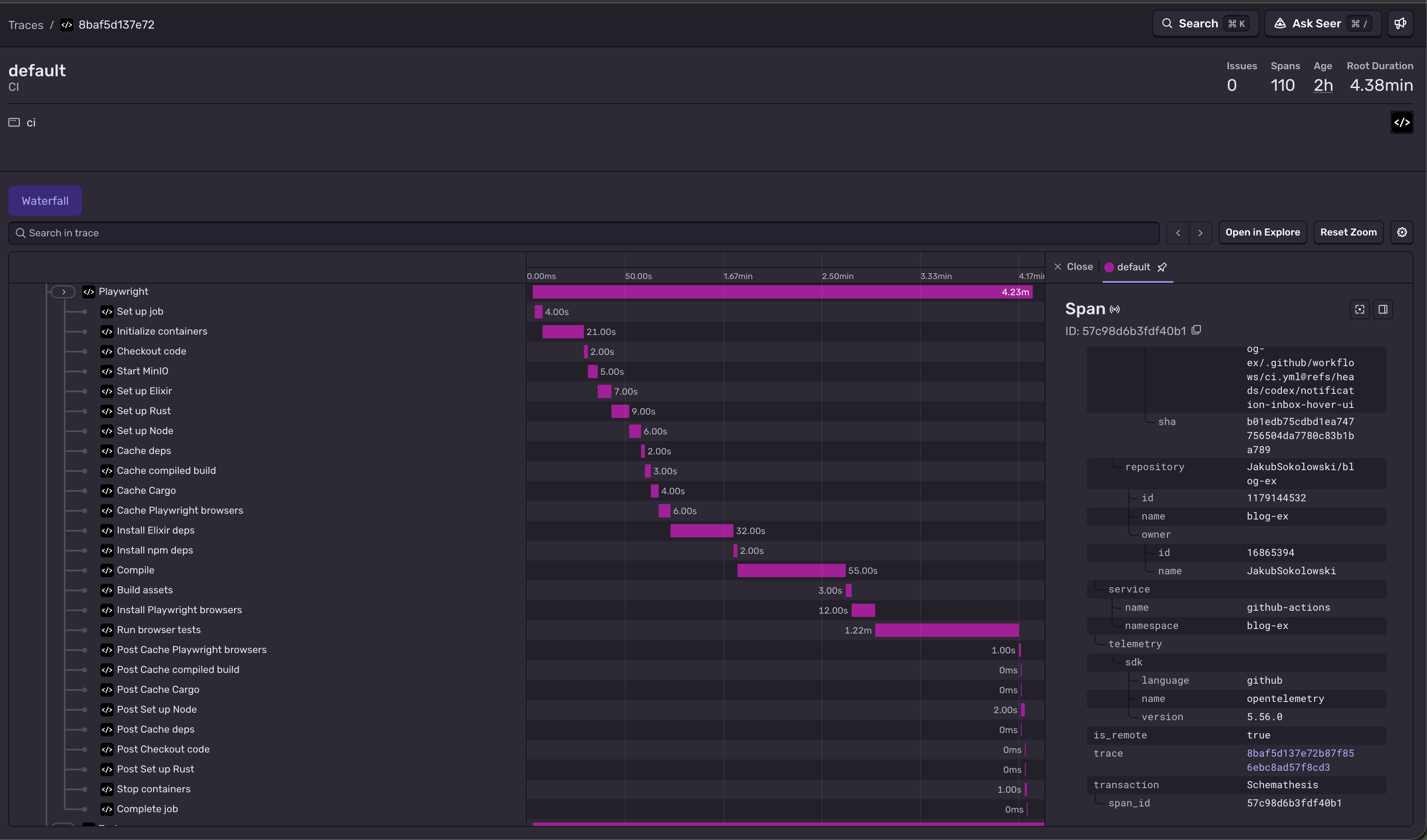

I wanted to dig a bit deeper on how much each step in the job like Playwright actually takes, but the screenshot above is the absolute limit of the github actions observaibility.

I've heard cool things about blacksmith.sh but it requires (reasonably) for the repo to be in an organization and I did not want to bother with creating an org and transfering the repo there only for that.

I'm already paying for sentry so if figured there should be a way to somehow generate opentelemetry traces as part of github actions run, and upload them to sentry after - and there is!

opentelemetry-github action

There is of course already existing action for that - the opentelemetry-github action.

I wanted to trace my main CI job, and my post-merge Cache Warm action that sets up all the dependency cache for the elixir project and rust nif libs.

Here's the final actions-observability.yml file that worked for me.

name: Actions Observability

on: # zizmor: ignore[dangerous-triggers] Required for post-run telemetry; this workflow does not checkout or execute triggering workflow code.
  workflow_run:
    workflows:
      - Cache Warm
      - CI
    types:
      - completed

permissions:
  actions: read
  contents: read

jobs:
  export:
    runs-on: ubuntu-latest
    name: Export workflow trace

    steps:
      - name: Export workflow telemetry
        uses: plengauer/opentelemetry-github/actions/instrument/workflow@8a42906ace6a618a3b91545ef9b655b8c6d2ac23 # v5.54.0
        with:
          self_monitoring: "false"
        env:
          OTEL_SERVICE_NAME: github-actions
          OTEL_TRACES_EXPORTER: otlp
          OTEL_METRICS_EXPORTER: none
          OTEL_LOGS_EXPORTER: none
          OTEL_EXPORTER_OTLP_PROTOCOL: http/protobuf
          OTEL_EXPORTER_OTLP_TRACES_ENDPOINT: ${{ secrets.SENTRY_GITHUB_ACTIONS_OTLP_TRACES_ENDPOINT }}
          OTEL_EXPORTER_OTLP_HEADERS: ${{ secrets.SENTRY_GITHUB_ACTIONS_OTLP_HEADERS }}
          OTEL_RESOURCE_ATTRIBUTES: service.namespace=repo-ex,deployment.environment=ci,github.repository=JakubSokolowski/repo-ex

To connect it to the OTLP endpoint for your project, you can follow the official sentry instructions.

Results

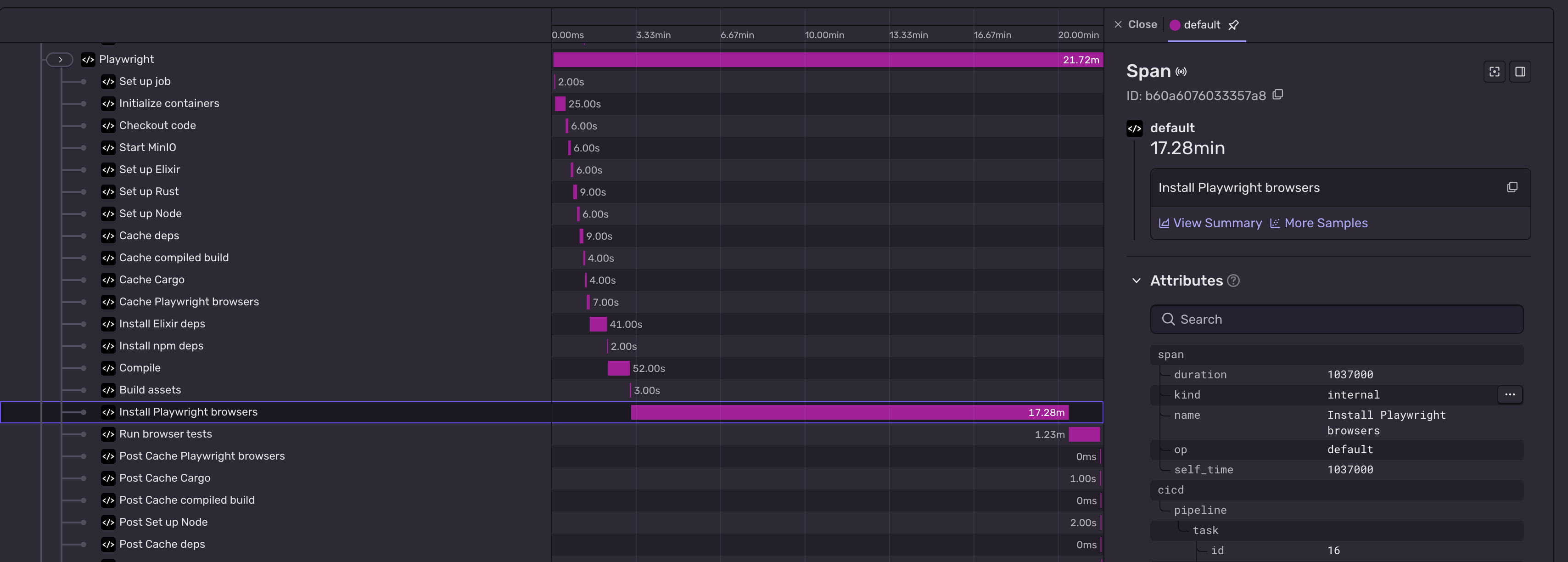

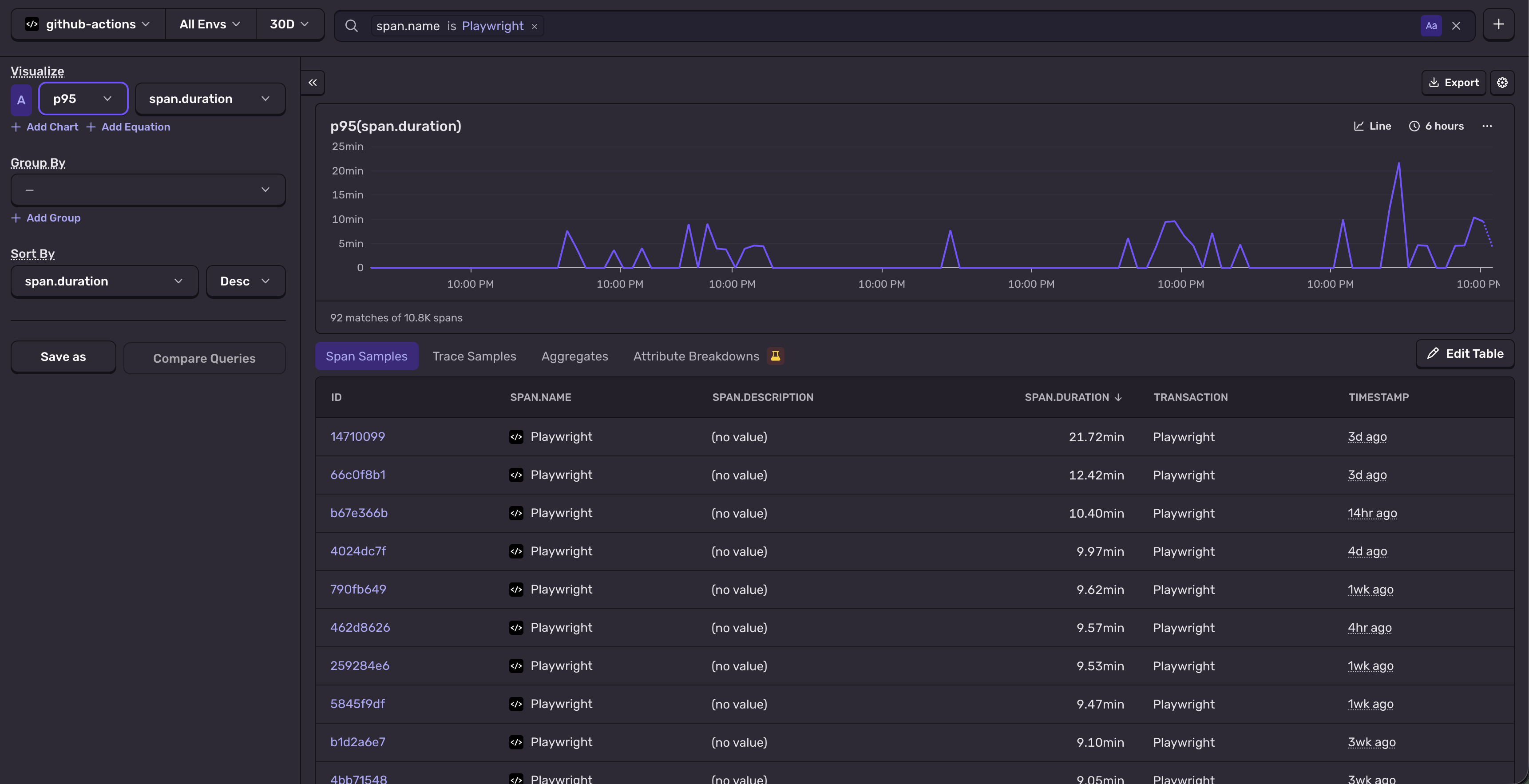

Here's the same Plawright step now:

Impressive, very nice, very observabl

Adding this also helped me to identify a cache issue in the schemathesis job, that cut the time down from ~7 to 3 minutes.

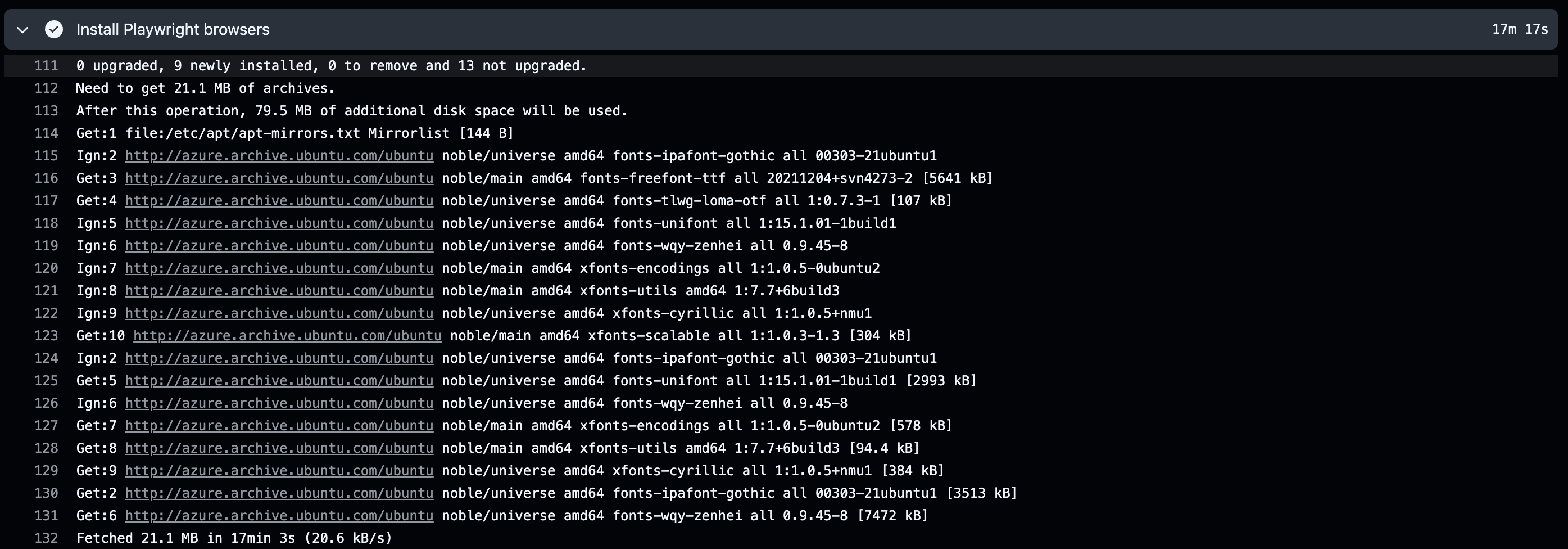

It's also very informative to see that I didn't add some new shitty playwright tests, but rather the Install Playwright step suddenly started to take ~17 minutes from the usual 20 seconds.

The Ubuntu/Azure apt mirror was shoveling bits one by one

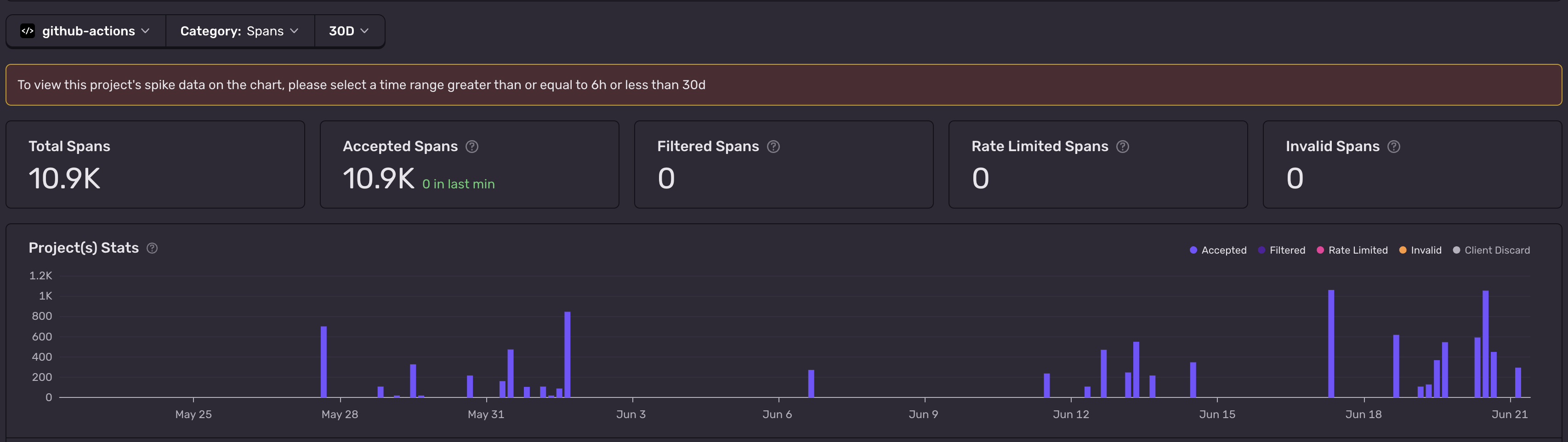

I like the new observability very much. Im doing like a couple prs a week to that repo, and for the last month this used up ~10k spans in sentry, which I think is totally acceptable.

This runs as a dedicated action, so it uses up like 1 extra billable minute per run, which I think it's totally acceptable as well, especially given the time savings in other action that it helped me time. Overall, p cool! Thanks to plengauer for this action. It does even more, it can trace shell calls and all the curls and wgets run as part of the actions.

I don't have the need for that yet, unless the ubuntu mirrors become slow again.
